Product Description

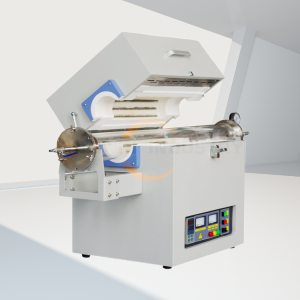

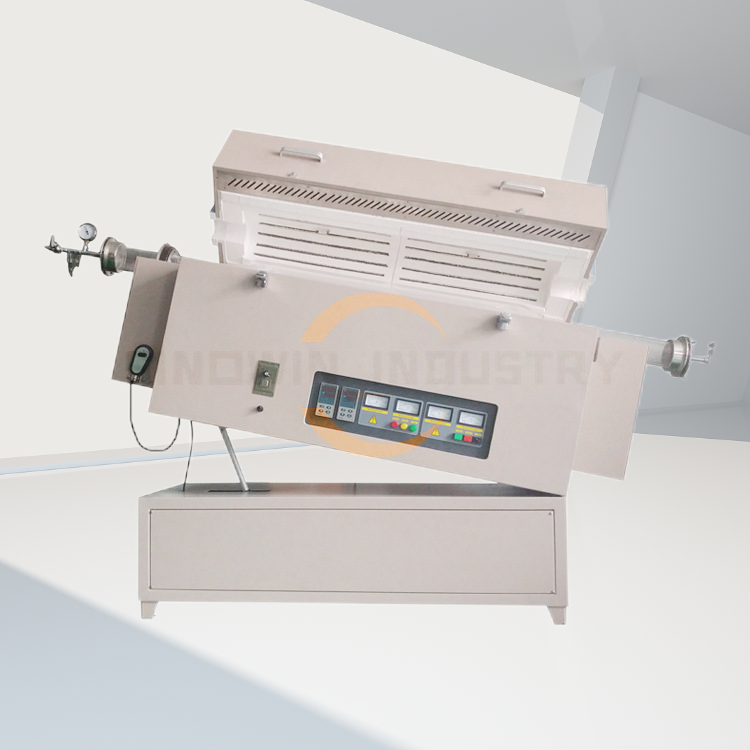

1200 degree 3 Multi-zone Vacuum Tube Furnace is split with three heating zones, which can achieve faster heating up to 1200oC and create a different thermal gradient by adjust different heating zone temperature. It is excellent furnace to prepare functional materials under thermal gradient, epitaxial film growth by CVD or PVD with a vacuum system, and also can be used for annealing, diffusing and sintering sample in various atmospheres.
Technical of the 1200 degree 3 Multi-zone VacuumTube Furnace
| Model | 1200C-3 Open lengthen Multi-position vacuum atmosphere tube furnace |
| Furnace chamber | Imported high pure poly crystalline alumina fiber, excellent heat
preservation |
| Furnace tube size | Φ40/60/80/1000mm |
| Heating element | 0Cr27Al7Mo2 |
| Thermometric component | N mode Thermocouples |
| Temperature control mode | The temperature control system uses artificial intelligence technology, |
| with PID control, self – tuning function, 50 the heating and cooling program | |
| Seal mode | Stainless steel KF fast
water-cooled flange extrusion seal |
| Standard vacuum degree | ≤50Pa(Conventional mechanical pump + pointe pressure gauge) |
| ≤10Pa(With high mechanical pump +
digital pressure gauge) |
|
| ≤0.005Pa(Molecular pump system) | |
| Working temperature | ≤1150C |
| Max temperature | 1200C |
| Constant temperature accuracy | ±1C |
| Max. Temperature rising rate | 40C per minute |
| Recommend temperature rising rate | ≤30C/min |
| Rated power | 6KW |
| Working power | 4KW |
| Voltage | AC220V 50HZ/60HZ |
| Weight | 120Kg |
| Standard accessories | Sealed water-cooled flange1 pcs,
O rings 4 pcs, alumina tube 1 pcs, vacuum pump 1 set, |
| pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs | |
| Optional purchase accessories | Furnace hobs; Mixed gas system;
Low, medium and high vacuum system; |
| All kinds of alumina crucibles; Alumina tube; Computer control software; | |
| Paperless recorder, Cooling water
circulation machine, etc. |
Please feel free to consult for any additional questions or specifics related to your requirements for our 1200 degree 3 Multi-zone VacuumTube Furnace
!and Nanyang sinowin industry co.ltd are not only a lab and industrial furnace supplier but a reliable partner to assist you the safe solutions of the heat treatment .
