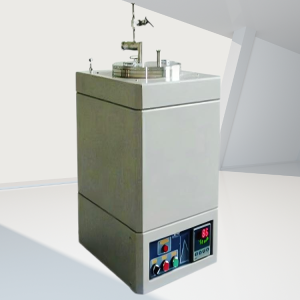

Product Description:1200C Top-Loading Crucible Furnace
The 1200C Top-Loading Crucible Furnace designed and produced by nanyang sinowin industry is used for metallurgy, ceramics, and materials science applications. This furnace is engineered to reach temperatures up to 1200 degrees Celsius, providing optimal performance for a variety of heating processes.
it is is ideal for both professional labs and educational institutions.
How Does It Work?
This furnace operates using advanced heating elements that distribute heat evenly throughout the crucible chamber. The top-loading design allows for easy loading and unloading of materials, facilitating efficient workflow. With user-friendly controls, operators can set and monitor the temperature to ensure optimal results during various processes.
Applications of the 1200C Top-Loading Crucible Furnace:
The 1200C Top-Loading Crucible Furnace is versatile and can be utilized in numerous applications, including:
- Melting of metals for casting and alloying processes
- Sintering of ceramic materials to achieve desired density and strength
- Ashing of samples in analytical laboratories
- Heating experiments in research settings
Whether you are a professional or a newcomer to the field of thermal process, the 1200C Top-Loading Crucible Furnace is a reliable and efficient solution for all your high-temperature heating needs.
Technical Parameter of the 1200C Top-Loading Crucible Furnace:
1200C Top-Loading Crucible Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Support customized upon request |
| Standard Working Temperature | 1100oC ( continuous ) |
| Maximum Working Temperature | 1200oC ( < 3 hrs) |
| Temperature Control | 30 steps programmable and PID automatic controller |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | Kanthal resistance wire |
| Thermocouples | K type |
| Working Voltage | AC 220V Single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 0.7-80 KW |
| Outside Size | According to required chamber size |
| Net Weight | According to required chamber size |
| SW series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory. | |
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| K type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size(WxHxD OR DIAxH mm) |
| SW-1200CF | 100*100*100mm or dia100 H100mm |
| SW-1200CF | 120x120x130mm or dia120H150mm |
| SW-1200CF | 150x150x150mm or dia150H200mm |
| SW-1200CF | 200x200x200mm or dia200H200mm |
| SW-1200CF | 200x200x300mm or dia200H300mm |
| SW-1200CF | 250x250x300mm or dia250H300mm |
| SW-1200CF | 300x300x400mm or dia300H400mm |
| SW-1200CF | 450x450x500mm or dia450H500mm |
| SW-1200CF | 500x500x600mm or dia500H600MM |
| SW-1200CF | 600x600x600mm |
| SW-1200CF | 800x800x800mm |
| SW-1200CF | 900x900x1000mm |
Main function & Features:
- Furnace chamber adopted imported alumina fibers material, with better insulation properties and durable to use; Heating elements adopted high quality 0Cr27Al7Mo2 wire, maximum temperature can reach to 1200 °C;
- Three sides or more surfaces of the embedded resistance wire heating with temperature field uniformity;
- Side open type furnace door, open the door power off;
- Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking , history recorder, output statements; can install the paperless recording device for data storage and output;
- Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Donot hesitate to Contact us at once for more information ,NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
