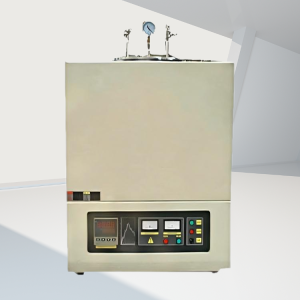

Product Description: 1200C Top Loading Vacuum Crucible Furnace
The 1200C Top Loading Vacuum Crucible Furnace operates within a temperature range of up to 1200 degrees Celsius, making it perfect for melting a wide variety of metals and alloys. Its efficient vacuum chamber ensures that your materials are processed in a controlled atmosphere, minimizing oxidation and contamination during the melting process.
Equipped with high temperature control systems and safety features, this furnace is engineered for ease of use and longevity. The top-loading design provides convenient access for loading and unloading materials, while its robust construction guarantees durability under intensive use.
Main function and features:
- Furnace chamber adopted imported alumina poly-crystalline fiber, with good insulation and
durability properties; And adopted the imported silicon carbide rod as heating elements, greatly
improving the service life.
- Adopted top open door structure, power cutoff automatically when open the door.
- Reserved 485 converter interface, can remote control of single or multiple furnace through software and
Internet, real-time tracking , history recorder, output statements ; can install the paperless recording device
for data storage and output.
- Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Application :Tempering, annealing and other heat treatment of metal materials and aluminum, light alloy
hardening, solid solution treatment, aging treatment and other experiments.
Technical Parameters of the 1200C Top Loading Vacuum Crucible Furnace
1200C Top Loading Vacuum Crucible Furnace |
|
| Heating kettle size | Dia250/200mm 300/400mm 300*200*200mm 400* 300* 300mm (Customizable) |
| Temperature control model | The temperature control system uses artificial intelligence technology, with PID control,
self – tuning function, 30 the heating and cooling program |
| Heating elements | 0Cr27Al7Mo2 |
| Vacuum degree ultimate vacuum: | ,- 0.1MPA |
| Furnace Atmosphere | Nitrogen, Argon and other inert gases |
| Control, monitoring components | N mode thermocouple + S mode thermocouple |
| Working temperature | ≤1000℃ |
| Maximum temperature | 1050℃ |
| Constant temperature accuracy | ±1℃ |
| Ultimate vacuum | ≤0.1Pa |
| Max pressure | ≤0.15MPa |
| Heating power | 3KW |
| Power supply | AC220V 50HZ/60HZ |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1200VCF | 120x120x130mm or dia120H150mm |
| SW-1200VCF | 150x150x150mm or dia150H200mm |
| SW-1200VCF | 200x200x200mm or dia200H200mm |
| SW-1200VCF | 200x200x300mm or dia200H300mm |
| SW-1200VCF | 250x250x300mm or dia250H300mm |
| SW-1200VCF | 300x300x400mm or dia300H400mm |
| SW-1200VCF | 450x450x500mm or dia450H500mm |
Whether you are in a research laboratory, a manufacturing facility, or an educational environment, the 1200C Top loading vacuum crucible furnace
is an indispensable tool for achieving high-quality results in metal processing. Experience the perfect blend of technology and performance with this exceptional furnace.
Donot hesitate to Contact us at once for more information of Nanyang Sinowin Industry’s industrial&lab furnaces. NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
