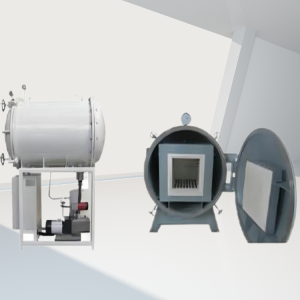

Product Description: 1400 Degree Laboratory Vacuum Resistance Furnace
1400 Degree Laboratory Vacuum Resistance Furnace is designed and produced by nanyang sinowin industry for advanced research and industrial applications. This furnace is engineered to provide precise temperature control, allowing for an unparalleled level of accuracy in experiments that require high-temperature settings.Our 1400 Degree Laboratory Vacuum Resistance Furnace is suited for a variety of materials and processes, including sintering, calcining, and annealing in a controlled atmosphere. The vacuum capabilities enhance material properties by minimizing oxidation and contamination during high-temperature tests.
Key Features:
- High-Temperature Efficiency: Reaches up to 1400 degrees Celsius with a consistent and uniform heating profile.
- Vacuum Operation: Advanced vacuum technology ensures a clean environment for sensitive materials.
- Robust Construction: Built with durable materials to withstand rigorous laboratory conditions.
- User-Friendly Interface: Equipped with an intuitive control system for easy operation and monitoring.
Whether you are in a research facility, university laboratory, or industrial setting, the 1400 Degree Laboratory Vacuum Resistance Furnace is the ideal choice for all your high-temperature experimental needs. Elevate your research capabilities with our top-notch furnace designed for precision and reliability.
Technical Parameters of our 1400 Degree Laboratory Vacuum Resistance Furnace
Vacuum furnace 1×10-3PA 1400C-1400 Degree Laboratory Vacuum Resistance Furnace |
||
| Main Specifications: | ||
| Inside Chamber Size | Support customized upon client require | |
| Standard Working Temperature | 1350oC ( continuous ) | |
| Maximum Working Temperature | 1400oC ( < 3 hrs) | |
| Furnace Atmosphere | Nitrogen, Argon and other inert gases | |
| Vacuum degree: | 1X10-3PA | |
| Temperature Control | 50 steps programmable and PID automatic control | |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) | |
| Temperature Accuracy | +/- 1 .C | |
| Furnace structure | Double shell with fan cooling | |
| Heating Element | High quality SiC heater | |
| Thermocouples | S type | |
| Working Voltage | AC 220-440V Single/Three Phases 60/50 Hz (or according to your requirement) | |
| Max. Power | 1.5-100 KW | |
| Outside Size | Based on the chamber size | |
| Net Weight | Based on the chamber size | |
| Description | ||
| SWVF series box atmosphere furnace can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas. It’s an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company. | ||
| Standard package included with the furnace | ||
| Part description | Quantity | |
| S Thermal couple | 1 pc | |
| Inlet/outlet,valves | 1 set | |
| Flow meter | 1 pc | |
| Vacuum gauge | 1 pc | |
| Vacuum pump | 1 pc | |
| Furnace door block | 1 pc | |
| Thermal gloves | 1 pair | |
| Operation manual | 1 pc | |
| Standard Sizes: | ||
| Model | Chamber size(WxHSWAmm) | Max. Temperature |
| SWVF-1400 | 120x120x130mm | 1450.C |
| SWVF-1400 | 150x150x150mm | 1450.C |
| SWVF-1400 | 200x200x200mm | 1450.C |
| SWVF-1400 | 200x200x300mm | 1450.C |
| SWVF-1400 | 250x250x300mm | 1450.C |
| SWVF-1400 | 300x300x400mm | 1450.C |
| SWVF-1400 | 450x450x500mm | 1450.C |
| SWVF-1400 | 600x600x600mm | 1450.C |
Experience the excellence of our 1400 Degree Laboratory Vacuum Resistance Furnace today and push the boundaries of your laboratory work!
Please feel free to consult for any additional questions or specifics related to your requirements for our 1400 Degree Laboratory Vacuum Resistance Furnace
!and Nanyang sinowin industry co.ltd are not only a lab and industrial furnace supplier but a reliable partner to assist you the safe solutions of the heat treatment .
