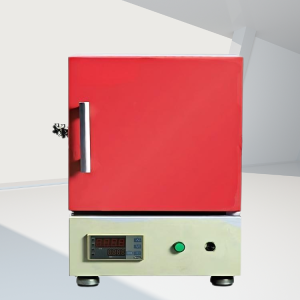

Product Description: High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace
The High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace is a specialized piece of equipment utilized in various laboratory and industrial settings. Capable of reaching temperatures up to 1400 degree, this furnace is ideally suited for tasks such as sintering, annealing, and thermal treatment of materials. It operates in a vacuum atmosphere, allowing for precise experimentation and processing under conditions that minimize oxidation and contamination,which significantly enhances the purity of samples, making it a vital tool for researchers and manufacturers striving for excellence in material properties.
This advanced furnace utilizes a sophisticated heating element combined with a vacuum sealing system to create a controlled environment. Upon initiating the heating process, the furnace gradually elevates the temperature to the desired level of up to 1400 degree. Simultaneously, the integrated vacuum pump removes air and other gases from the chamber, establishing a vacuum that prevents oxidation and contamination during high-temperature treatments.
Applications of the High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace:
The High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace is versatile and supports various applications across multiple fields. It is commonly used in:
- Materials science for sintering ceramics, metals, and composites
- Semiconductor manufacturing for doping and thermal processing
- Aerospace industries for material testing and processing
- Research laboratories for thermal analysis and characterization of new materials
Technical Parameters of the High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace:
High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1300oC ( continuous ) |
| Maximum Working Temperature | 1400oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC)
Ball valve and vacuum gauge is installed for immediate use Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | double shell with fan cooling |
| Heating Element | High quality SiC heater |
| Thermocouples | K type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 5.7KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 150kg |
| Detailed Description | |
| High quality sic heater wire as heating element and can be heated up to 1400oC
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1400VCF | 120x120x130mm or dia120H150mm |
| SW-1400VCF | 150x150x150mm or dia150H200mm |
| SW-1400VCF | 200x200x200mm or dia200H200mm |
| SW-1400VCF | 200x200x300mm or dia200H300mm |
| SW-1400VCF | 250x250x300mm or dia250H300mm |
| SW-1400VCF | 300x300x400mm or dia300H400mm |
| SW-1400VCF | 450x450x500mm or dia450H500mm |
Whether you are in a research laboratory, a manufacturing facility, or an educational environment, the High-Temperature Laboratory 1400 degree Vacuum Atmosphere Furnace
is an indispensable tool for achieving high-quality results in metal processing. Experience the perfect blend of technology and performance with this exceptional furnace.
Donot hesitate to Contact us at once for more information . NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
Technical Parameters of the Laboratory 1400°C High-Temperature Vacuum Atmosphere Furnace:
Laboratory 1400°C High-Temperature Vacuum Atmosphere Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1300oC ( continuous ) |
| Maximum Working Temperature | 1400oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC)
Ball valve and vacuum gauge is installed for immediate use Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | double shell with fan cooling |
| Heating Element | High quality SiC heater |
| Thermocouples | K type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 5.7KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 150kg |
| Detailed Description | |
| High quality sic heater wire as heating element and can be heated up to 1400oC
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1400VCF | 120x120x130mm or dia120H150mm |
| SW-1400VCF | 150x150x150mm or dia150H200mm |
| SW-1400VCF | 200x200x200mm or dia200H200mm |
| SW-1400VCF | 200x200x300mm or dia200H300mm |
| SW-1400VCF | 250x250x300mm or dia250H300mm |
| SW-1400VCF | 300x300x400mm or dia300H400mm |
| SW-1400VCF | 450x450x500mm or dia450H500mm |
