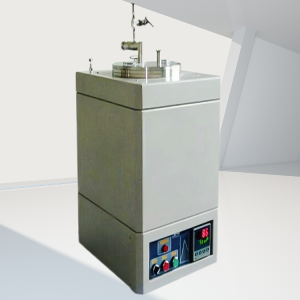

Product Description: 1400°C High-Temperature Vacuum Vertical Pit Furnace
The1400°C High-Temperature Vacuum Vertical Pit Furnace designed and produced by nanyang sinowin industry is an essential solution for advanced material sintering, alloy production, and specialized thermal treatments. this furnace offers precise temperature control and a stable vacuum environment for both industrial and research applications, ensuring optimal results in various thermal processes.
Constructed with high-quality materials capable of withstanding extreme heat, the 1400°C High-Temperature Vacuum Vertical Pit Furnace guarantees longevity and reliability. Its vertical design maximizes space efficiency while allowing for easy loading and unloading of materials. With a maximum operating temperature of 1400°C, it is perfectly suited for demanding applications that require exceptional performance under high-temperature conditions.
Engineered with user-friendly controls, our 1400°C High-Temperature Vacuum Vertical Pit Furnace simplifies the monitoring of heating cycles and vacuum levels, providing you with the confidence that your materials will undergo uniform heating and effective sintering. This furnace is ideal for producing high-purity materials and thin films, as well as conducting experimental trials in laboratory settings.
Technical Parameters of the 1400°C High-Temperature Vacuum Vertical Pit Furnace
1400°C High-Temperature Vacuum Vertical Pit Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1300oC ( continuous ) |
| Maximum Working Temperature | 1400oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC)
Ball valve and vacuum gauge is installed for immediate use Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | double shell with fan cooling |
| Heating Element | High quality SiC heater |
| Thermocouples | K type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 5.7KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 150kg |
| Detailed Description | |
| High quality sic heater wire as heating element and can be heated up to 1400oC
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1400VCF | 120x120x130mm or dia120H150mm |
| SW-1400VCF | 150x150x150mm or dia150H200mm |
| SW-1400VCF | 200x200x200mm or dia200H200mm |
| SW-1400VCF | 200x200x300mm or dia200H300mm |
| SW-1400VCF | 250x250x300mm or dia250H300mm |
| SW-1400VCF | 300x300x400mm or dia300H400mm |
| SW-1400VCF | 450x450x500mm or dia450H500mm |
Choose the 1400°C High-Temperature Vacuum Vertical Pit Furnace for your thermal processing needs and experience unmatched quality and innovation in high-temperature technology. Whether you’re in research, manufacturing, or materials science, this furnace stands out as an indispensable tool in your operations. Elevate your capabilities with our state-of-the-art furnace, designed to meet the strictest industry standards.
NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .Donot hesitate to Contact us at once for more information of Nanyang Sinowin Industry’s industrial&lab furnaces.
