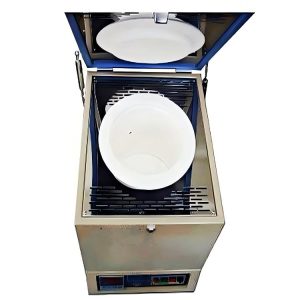

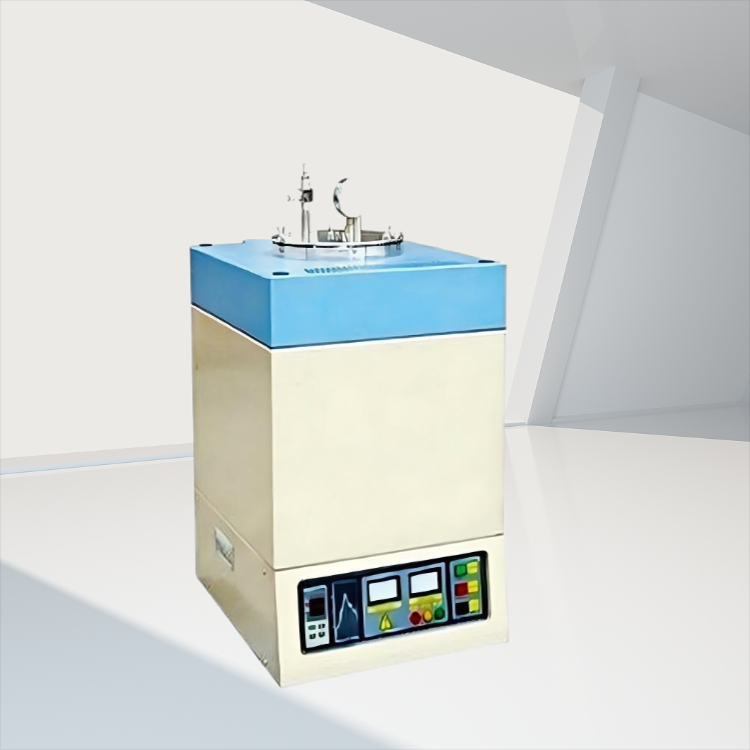

Product Description: 1700 degree Crucible Vacuum Muffle Furnace
The 1700 degree Crucible Vacuum Muffle Furnace is designed and produced by nanyang sinowin industry for routine laboratory applications to deliver exceptional sintering results.Featuring high-performance dual silicide molybdenum heating elements, the furnace ensures uniform heat distribution throughout its chamber. The furnace chamber is constructed from imported polycrystalline alumina fiber materials, providing superior insulation and efficiency.
Equipped with advanced microcomputer control, the 1700 Degree Crucible Vacuum Muffle Furnace is remarkably user-friendly. It offers programmable functions, enabling automatic heating, holding, and cooling cycles tailored to your specific experimental requirements.
Whether you are conducting high-temperature experiments, material synthesis, or sintering processes, the 1700 Degree Crucible Vacuum Muffle Furnace stands out as the optimal solution for precision and reliability in your laboratory.
Key Features:
- High-Temperature Capability Achieve temperatures up to 1700 degree, suitable for various materials including metals, ceramics, and composites.
- Vacuum Operation The vacuum feature allows for processes that demand an oxygen-free environment, preventing oxidation and contamination during heating.
- User-Friendly Interface Equipped with a digital control system for precise temperature management, ensuring repeatable results and enhancing operational efficiency.
- Safety Mechanisms Designed with multiple safety features to protect the user and maintain structural integrity under high-stress conditions.
Technical Parameters of the 1700 degree Crucible Vacuum Muffle Furnace:
| 1700 degree Crucible Vacuum Muffle Furnace | |
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1600oC ( continuous ) |
| Maximum Working Temperature | 1700oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC) Ball valve and vacuum gauge is installed for immediate use
Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | High quality Mois2 heater M1800 |
| Thermocouples | B type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 6KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 160kg |
| Detailed Description | |
| High quality High quality M1800 Mosi2 heater as heating element and can be heated up to 1700oC .
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1700VCF | 120x120x130mm or dia120H150mm |
| SW-1700VCF | 150x150x150mm or dia150H200mm |
| SW-1700VCF | 200x200x200mm or dia200H200mm |
| SW-1700VCF | 200x200x300mm or dia200H300mm |
| SW-1700VCF | 250x250x300mm or dia250H300mm |
| SW-1700VCF | 300x300x400mm or dia300H400mm |
| SW-1700VCF | 450x450x500mm or dia450H500mm |
Choose the 1700 degree Crucible Vacuum Muffle Furnace produced by nanyang sinowin industry for your thermal processing needs and experience unmatched quality and innovation in high-temperature technology. Donot hesitate to Contact us at once for more information ,NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
