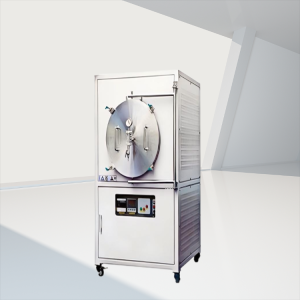

Product Description: 1700 Degree High Vacuum Annealing Furnace
The 1700 Degree High Vacuum Annealing Furnace, operates at a remarkable temperature of 1700 degrees Celsius, facilitating the optimal annealing of a wide range of materials. The furnace ensures a controlled environment that minimizes contamination and promotes uniform heating. The high vacuum capability not only enhances the quality of the annealing process but also significantly extends the lifespan of the components being treated.
This furnace is ideal for applications in metallurgy, ceramics, and semiconductor manufacturing, making it an essential addition to any laboratory or production facility focused on achieving superior material properties. The 1700 Degree High Vacuum Annealing Furnace supplied by nanyang sinowin industry is designed for efficiency, reliability, and excellent performance under rigorous operating conditions.
Technical Parameters of 1700 Degree High Vacuum Annealing Furnace:
1700 Degree High Vacuum Annealing Furnace |
|
| Furnace chamber size | 150*150*150mm 300*200*200mm 400* 300* 300mm (Customizable) |
| (D x W x H) | |
| Furnace chamber | Imported high pure poly crystalline alumina fiber, excellent heat preservation |
| Heating element | High quality Silicon molybdenum rod |
| Thermometric component | B-mode Thermocouples |
| Temperature control mode | The temperature control system uses artificial intelligence technology,
self – tuning function, 50 steps programmable and PID automatic control |
| Vacuum degree ultimate vacuum: | 10-3PA |
| Maximum operating temperature | 1700C |
| Furnace structure | Double stainless steel chamber with mechanical pump and diffusion pump set |
| Constant temperature accuracy | ±1C |
| Max heating rate | 40C/min |
| Recommend temperature rising rate | ≤20C/min |
| Rated power | 4/10/16KW |
| Working power | AC220/380V 50HZ/60HZ |
| Standard accessories | Oven gloves, crucible tongs,vacuum pump and gauge ,crucibles 2pcs ,mosi2 heater 2pcs.Thermocouples 1pc |
| Optional purchase accessories | All kinds of corundum crucible, computer control software and paperless recorder |
Choose the 1700 Degree High Vacuum Annealing Furnace for your heat treatment needs and experience the unparalleled quality and precision that it delivers. Upgrade your processes with a furnace that meets the highest standards in the industry!
Donot hesitate to Contact us at once for quotation of Sinowin Industry’s industrial&lab furnaces , and we are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
