Product Description:

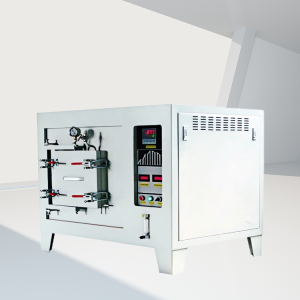

The 1700 High temperature vacuum furnace for laboratory is designed and produced by nanyang sinowin industry specifically for laboratory settings requiring high-temperature processing. This advanced furnace reaches temperatures up to 1700 degrees Celsius, making it an ideal choice for a wide range of applications, including materials research, sintering, and high-precision experiments.
The 1700 High Temperature Vacuum Furnace for Laboratory is engineered with advanced technology to ensure optimal performance and reliability. Its robust construction guarantees exceptional thermal stability and uniform heat distribution, which are crucial for achieving accurate and repeatable results in your experiments.
Featuring an intuitive control interface and advanced safety mechanisms, this furnace provides ease of use while safeguarding your projects. The vacuum capability allows for a controlled environment, preventing oxidation and contamination, which is essential for sensitive materials and processes.
Technical Parameter of the 1700 High temperature vacuum furnace for laboratory
| 1700 High temperature vacuum furnace for laboratory | |
| Furnace chamber size | 150*150*150mm 300*200*200mm 400* 300* 300mm (Customizable) |
| (D x W x H) | |
| Furnace chamber | Imported high pure poly crystalline alumina fiber, excellent heat preservation |
| Heating element | High quality Silicon molybdenum rod |
| Thermometric component | B-mode Thermocouples |
| Temperature control mode | The temperature control system uses artificial intelligence technology,
self – tuning function, 50 steps programmable and PID automatic control |
| Vacuum degree ultimate vacuum: | ,- 0.1MPA/10PA |
| Maximum operating temperature | 1700C |
| Furnace Atmosphere | Nitrogen, Argon and other inert gases |
| Constant temperature accuracy | ±1C |
| Max heating rate | 40C/min |
| Recommend temperature rising rate | ≤20C/min |
| Rated power | 4/10/16KW |
| Working power | AC220/380V 50HZ/60HZ |
| Standard accessories | Oven gloves, crucible tongs,vacuum pump and gauge ,crucibles 2pcs ,mosi2 heater 2pcs.Thermocouples 1pc |
| Optional purchase accessories | All kinds of corundum crucible, computer control software and paperless recorder |
Whether you’re working with ceramics, metals, or composite materials, this furnace is your reliable partner in high-temperature experimentation. Please feel free to consult for any additional questions or specifics related to your requirements for our The 1700 High temperature vacuum furnace for laboratory
!and Nanyang sinowin industry co.ltd are not only a lab and industrial furnace supplier but a reliable partner to assist you the safe solutions of the heat treatment .
Technical Parameter of the 1700 High temperature vacuum furnace for laboratory
| 1700 High temperature vacuum furnace for laboratory | |
| Furnace chamber size | 150*150*150mm 300*200*200mm 400* 300* 300mm (Customizable) |
| (D x W x H) | |
| Furnace chamber | Imported high pure poly crystalline alumina fiber, excellent heat preservation |
| Heating element | High quality Silicon molybdenum rod |
| Thermometric component | B-mode Thermocouples |
| Temperature control mode | The temperature control system uses artificial intelligence technology,
self – tuning function, 50 steps programmable and PID automatic control |
| Vacuum degree ultimate vacuum: | ,- 0.1MPA/10PA |
| Maximum operating temperature | 1700C |
| Furnace Atmosphere | Nitrogen, Argon and other inert gases |
| Constant temperature accuracy | ±1C |
| Max heating rate | 40C/min |
| Recommend temperature rising rate | ≤20C/min |
| Rated power | 4/10/16KW |
| Working power | AC220/380V 50HZ/60HZ |
| Standard accessories | Oven gloves, crucible tongs,vacuum pump and gauge ,crucibles 2pcs ,mosi2 heater 2pcs.Thermocouples 1pc |
| Optional purchase accessories | All kinds of corundum crucible, computer control software and paperless recorder |
