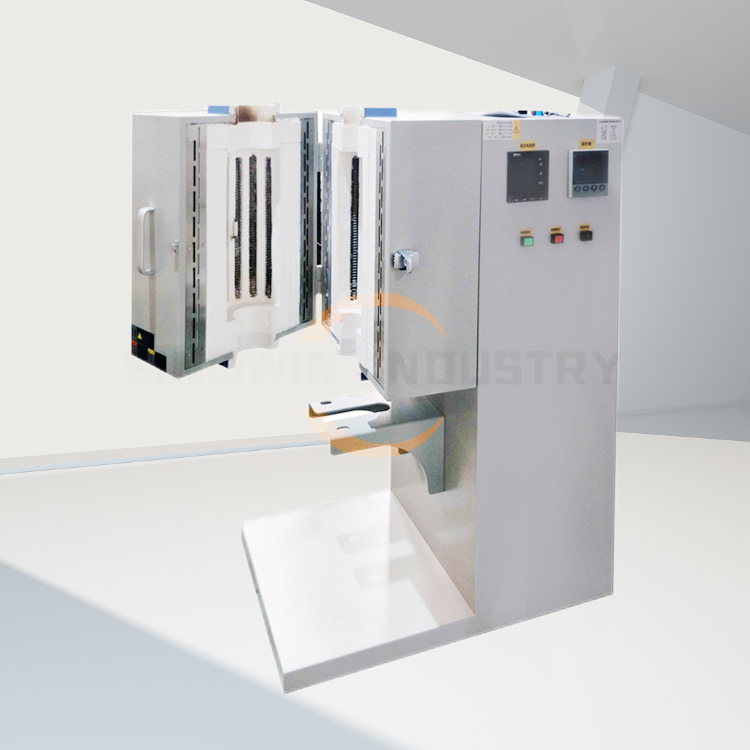

Product Description: 1700C Laboratory Bottom Load Vacuum Furnace with Nitrogen inlet for Sintering of advanced ceramics and metal components
The 1700C Laboratory Bottom Load Vacuum Furnace designed and produced by nanyang sinowin industry operates under vacuum conditions, ensuring minimal oxidation and contamination during the heating process. Capable of reaching temperatures up to 1700 degrees Celsius, this oven is ideal for a range of materials, including ceramics, metals, and composites. With its bottom-load design, it offers easy access to samples while maximizing workspace efficiency.
Technical Parameters of the 1700C Laboratory Bottom Load Vacuum Furnace
| 1700C Laboratory Bottom Load Vacuum Furnace | |
| Main Specifications: | |
| Inside Chamber Size | 200 x 200 x 200 mm (8″x8″x8″, 8 Liter) |
| Standard Working Temperature | 1600oC ( continuous ) |
| Maximum Working Temperature | 1700oC ( < 3 hrs) |
| Furnace Atmosphere | Nitrogen, Argon and other inert gases |
| Vacuum degree: | – 0.1MPA |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 30.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | MoSi2 heating elements |
| Thermocouples | B type |
| Working Voltage | AC 380V Three Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 10KW |
| Outside Size | 550 x 540 x 820 mm |
| Net Weight | 230 Kg |
| swA series box atmosphere furnace can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas. It’s an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company. | |
| Standard package included with the furnace | |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Inlet/outlet,valves | 1 set |
| Flow meter | 1 pc |
| Vacuum gauge | 1 pc |
| Vacuum pump | 1 pc |
| Furnace door block | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size(WxHswAmm) |
| SWA-1700BL | 120x120x130mm |
| SWA-1700BL | 150x150x150mm |
| SWA-1700BL | 200x200x200mm |
| SWA-1700BL | 200x200x300mm |
| SWA-1700BL | 250x250x300mm |
| SWA-1700BL | 300x300x400mm |
| SWA-1700BL | 450x450x500mm |
How Does it Work?
Operating the 1700C Laboratory Bottom Load Vacuum Furnace is straightforward. The oven’s chamber is evacuated to create a vacuum environment, which significantly lowers the boiling point of moisture and volatiles present in materials. This operation enhances the thermal stability of sensitive components and reduces the risk of oxidation. The precise temperature control ensures uniform heating across samples, allowing for consistent quality and performance in your experiments or production processes.
What Are Its Applications?
The versatility of the 1700C Laboratory Bottom Load Vacuum Furnace makes it suitable for various applications including but not limited to:
- Sintering of advanced ceramics and metal components
- Heat treatment of materials in research and development
- Drying of moisture-sensitive materials
- Production of embedded systems and composites
With features designed for efficiency and accuracy, the 1700C Laboratory Bottom Load Vacuum Furnace is an invaluable tool for researchers, manufacturers, and professionals in laboratories.
Donot hesitate to Contact us at once for more information ,NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .
