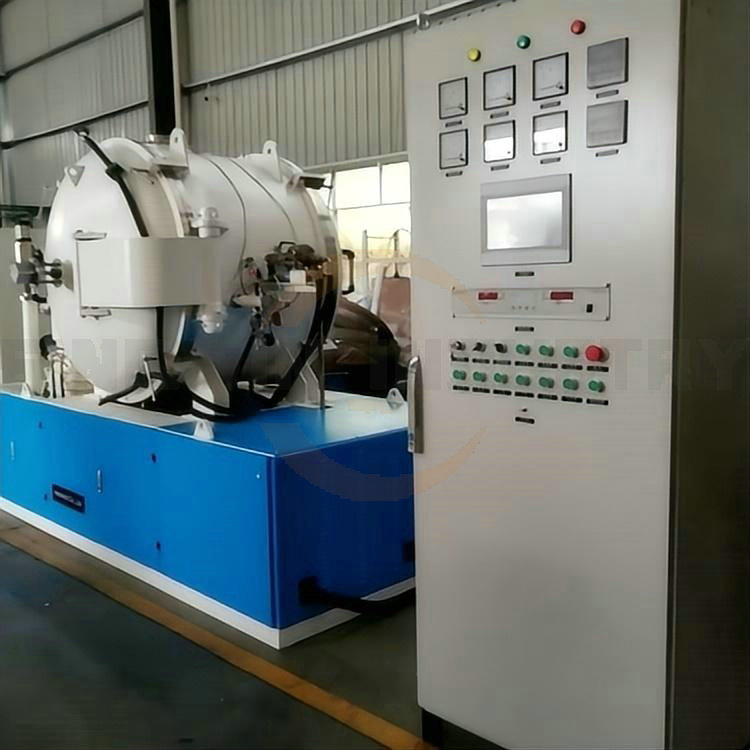

2100°C Vacuum Graphite Sintering Furnace
Product Description:
The 2100°C Vacuum Graphite Sintering Furnace is designed and supplied by nanyang sinowin furnace to facilitate superior thermal conductivity and uniform temperature distribution, which are critical for achieving optimal results in sintering operations. The vacuum environment prevents oxidation and contamination, making this furnace ideal for working with high-purity materials and complex geometries.
Whether you are in the fields of ceramics, metals, or advanced composite materials, the 2100°C Vacuum Graphite Sintering Furnace provides the reliability and performance that professionals demand. Count on our furnace to deliver consistent results, enhancing your production capabilities and enabling you to innovate with confidence.
Key Features:
- Maximum operating temperature: 2100°C
- Optimized vacuum environment for contamination-free sintering
- Exceptional thermal conductivity for uniform heating
- Suitable for a wide range of materials
Advantages:
- Advanced Control System: The 2100°C Vacuum Graphite Sintering Furnace features an automatic temperature control system that allows for seamless high and low-temperature switching, providing precise temperature management with a tolerance of ±5°C for optimal sintering results.
- Robust Design and Material: Constructed with a durable horizontal chamber made of 8MM thick 304 stainless steel, every component including flanges, end caps, and vacuum pipelines ensures exceptional resistance to oxidation and corrosion, making this furnace a reliable choice for demanding applications.
- High Efficiency and Performance: With a rated power of 120KW and an operational capacity of 100KW, this furnace achieves a remarkable heating rate, maintaining an average increase of less than 15°C/min up to 1200°C and under 5°C/min from 1200°C to 2200°C while maintaining temperature uniformity within ±5°C.
- Optimal Working Atmosphere: Designed for vacuum pre-extraction and safe operation under argon gas protection during heating and cooling, the furnace operates at an extreme vacuum level of 5×10⁻²Pa, ensuring minimal contamination and superior sintering quality.
- Comprehensive Support and Warranty: This Vacuum Graphite Sintering Furnace is backed by a dedicated customer service team and a robust warranty, ensuring peace of mind and support for maintenance, ensuring long-term performance in your operational setup.
Control mode: automatic temperature control of the instrument/manual (automatic switching between high and low temperature)
Rated power: 120KW
Power: 100KW
Furnace body ：
Horizontal (inner furnace shell 8MM thick 304 stainless steel, flange, head, vacuum pipe material
The quality is 304 stainless steel.)
Loading space: not less than 300mm×300mm×300mm
Design temperature: 2150℃
Long term working temperature: 2100℃
Featuring: Graphite
Temperature uniformity: ±5℃.
Connection pipe: stainless steel pipe
Heating rate:
Below 1200℃, the average heating rate is less than 15℃/min;
Temperature control precision:
±5℃ (The automatic temperature control system can record real-time temperature, real-time pressure, historical temperature
Degree, etc.) 1200℃~2200℃, average heating rate <5℃/min.
Limit vacuum: 5*10-2Pa (cold, clean)
Working atmosphere:
Vacuum pre-pull, argon protection heating and cooling
rated voltage ：
3 phase, 380V (±10%), 50HZ
Cooling water inlet:
temperature 10℃~30℃。
Insulation layer composition:
12 layers of 10MM graphite felt, one layer of 20mm thick graphite hard felt, with CC bolts
Lock the insulation layer and frame.
