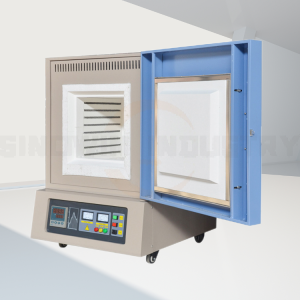

Product Description:Box Resistance Furnace
The Box Furnace is an advanced device specifically designed to meet the needs of scientific research and industrial production. This mul-tifunctional sinowin furnace is capable of sintering, melting, and analyzing a wide range of metallic, non-metallic, and other compound materials.
Product Details
Constructed with a multi-crystalline mullite fiber chamber, the Sinowin Box Furnace features a low thermal conductivity that provides exceptional insulation and energy-saving efficiency. This ensures a stable environment for your experiments, allowing better heat retention throughout the process. The top of the furnace is designed with a reinforced composite structure, meticulously crafted to prevent collapse over extended use. This not only enhances the stability of the furnace top but also prolongs the device’s lifespan.
This series of Sinowin Box Furnaces has been specially developed to cater to the requirements of universities, research institutes, and industrial enterprises for the sintering, melting, and analysis of metal, non-metal, and other compound materials. It is suitable for various experimental applications, delivering precise temperature control and a stable experimental environment.
Product Features
- High Working Temperature Capable of reaching up to 1800°C, fulfilling various high-temperature treatment needs.
- Customizable Large Capacity Available in sizes from 1L to 1000L, tailored to your specific requirements.
- Multiple Heating Elements Options include HRE iron-chromium-aluminum resistance wire, U-shaped silicon carbide rods, and U-shaped silicon-molybdenum rods to ensure uniform and efficient heating.
- Safe and Convenient Operation Features options for top-opening or side-opening designs, keeping operators away from heat sources for enhanced safety.
- Intelligent Control Equipped with a programmable automatic control function featuring 50 segments, enabling precise control of temperature curves.
- Safety Assurance Includes an over-temperature alarm function to effectively prevent unexpected incidents.
- Excellent Cooling Performance Utilizes a double-layer air-cooling structure to ensure the outer shell temperature remains below 60°C, significantly extending the service life of the equipment.
Parameter of the Box Resistance Furnace
1200℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1200 | 1100 | 100*100*100 | 1 | 0.8 | 1 | K Type |
| 1200 | 1100 | 120*120*130 | 2 | 1.2 | 1 | K Type |
| 1200 | 1100 | 150*150*150 | 3 | 2.5 | 1 | K Type |
| 1200 | 1100 | 150*150*200 | 5 | 3 | 1 | K Type |
| 1200 | 1100 | 200*200*200 | 8 | 5 | 1 | K Type |
| 1200 | 1100 | 200*200*300 | 12 | 6 | 1 | K Type |
| 1200 | 1100 | 300*300*300 | 27 | 8 | 1 | K Type |
| 1200 | 1100 | 300*300*400 | 36 | 10 | 3 | K Type |
| 1200 | 1100 | 400*400*400 | 64 | 16 | 3 | K Type |
| 1200 | 1100 | 500*500*500 | 125 | 25 | 3 | K Type |
| 1200 | 1100 | 600*600*600 | 216 | 36 | 3 | K Type |
| 1200 | 1100 | 800*800*800 | 512 | 64 | 3 | K Type |
| 1200 | 1100 | 900*900*900 | 729 | 80 | 3 | K Type |
| 1200 | 1100 | 1000*1000*1000 | 1000 | 100 | 3 | K Type |
1400℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1400 | 1300 | 100*100*100 | 1 | 1 | 1 | S Type |
| 1400 | 1300 | 120*120*130 | 2 | 2 | 1 | S Type |
| 1400 | 1300 | 150*150*150 | 3 | 3 | 1 | S Type |
| 1400 | 1300 | 150*150*200 | 5 | 4 | 1 | S Type |
| 1400 | 1300 | 200*200*200 | 8 | 5 | 1 | S Type |
| 1400 | 1300 | 200*200*300 | 12 | 7 | 1 | S Type |
| 1400 | 1300 | 300*300*300 | 27 | 9 | 1 | S Type |
| 1400 | 1300 | 300*300*400 | 36 | 11 | 3 | S Type |
| 1400 | 1300 | 400*400*400 | 64 | 18 | 3 | S Type |
| 1400 | 1300 | 500*500*500 | 125 | 27 | 3 | S Type |
| 1400 | 1300 | 600*600*600 | 216 | 40 | 3 | S Type |
| 1400 | 1300 | 800*800*800 | 512 | 70 | 3 | S Type |
| 1400 | 1300 | 900*900*900 | 729 | 88 | 3 | S Type |
| 1400 | 1300 | 1000*1000*1000 | 1000 | 110 | 3 | S Type |
1700℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type | |
| 1700 | 1600 | 100*100*100 | 1 | 1 | 1 | B Type | |
| 1700 | 1600 | 120*120*130 | 2 | 3 | 1 | B Type | |
| 1700 | 1600 | 150*150*150 | 3 | 4 | 1 | B Type | |
| 1700 | 1600 | 150*150*200 | 5 | 5 | 1 | B Type | |
| 1700 | 1600 | 200*200*200 | 8 | 7 | 1 | B Type | |
| 1700 | 1600 | 200*200*300 | 12 | 8 | 1 | B Type | |
| 1700 | 1600 | 300*300*300 | 27 | 10 | 3 | B Type | |
| 1700 | 1600 | 300*300*400 | 36 | 12 | 3 | B Type | |
| 1700 | 1600 | 400*400*400 | 64 | 20 | 3 | B Type | |
| 1700 | 1600 | 500*500*500 | 125 | 30 | 3 | B Type | |
| 1700 | 1600 | 600*600*600 | 216 | 45 | 3 | B Type | |
| 1700 | 1600 | 800*800*800 | 512 | 80 | 3 | B Type | |
| 1700 | 1600 | 900*900*900 | 729 | 96 | 3 | B Type | |
| 1700 | 1600 | 1000*1000*1000 | 1000 | 120 | 3 | B Type | |
1800℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1800 | 1700 | 100*100*100 | 1 | 2 | 1 | B Type |
| 1800 | 1700 | 120*120*130 | 2 | 4 | 1 | B Type |
| 1800 | 1700 | 150*150*150 | 3 | 6 | 1 | B Type |
| 1800 | 1700 | 150*150*200 | 5 | 7 | 1 | B Type |
| 1800 | 1700 | 200*200*200 | 8 | 8 | 1 | B Type |
| 1800 | 1700 | 200*200*300 | 12 | 9 | 1 | B Type |
| 1800 | 1700 | 300*300*300 | 27 | 12 | 3 | B Type |
| 1800 | 1700 | 300*300*400 | 36 | 15 | 3 | B Type |
Advantage of Box Furnace
- Advanced Design for Versatile Applications: The box furnace is specifically engineered to meet the demands of higher education institutions, research institutes, and industrial enterprises, making it ideal for sintering, melting, and analyzing various metallic, non-metallic, and compound materials.
- Superior Insulation and Energy Efficiency: Constructed with a multi-crystalline mullite fiber chamber, this box furnace features a low thermal conductivity, providing exceptional insulation and energy-saving benefits, ensuring a stable environment for your experiments.
- Robust and Durable Structure: Featuring a reinforced composite ceiling design, the box furnace guarantees long-term stability and resistance to structural collapse, significantly extending the operational lifespan of the equipment.
- High Performance and Safety Features: With a maximum operating temperature of 1800°C and customizable capacities ranging from 1L to 1000L, this box furnace also ensures safe operations through an upper or side-opening door design, and includes an over-temperature alarm for added protection.
- Intelligent Control for Precise Results: The box furnace is equipped with an advanced programmable control system capable of executing 50 temperature profiles, facilitating precise temperature curve management while maintaining superior cooling performance through its dual-layer air cooling system, ensuring outer shell temperatures remain below 60°C.
Whether you’re in the manufacturing sector or a research facility, our Resistance Box Furnace is an indispensable furnace and one guaranteed option for you.
Donot hesitate to Contact us at once for any further information of Sinowin Industry’s industrial&lab furnaces , and we are not only a supplier but a reliable partner to assist you the safe solutions of the heat resistance box furnace .
Parameter of the Box Resistance Furnace
1200℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1200 | 1100 | 100*100*100 | 1 | 0.8 | 1 | K Type |
| 1200 | 1100 | 120*120*130 | 2 | 1.2 | 1 | K Type |
| 1200 | 1100 | 150*150*150 | 3 | 2.5 | 1 | K Type |
| 1200 | 1100 | 150*150*200 | 5 | 3 | 1 | K Type |
| 1200 | 1100 | 200*200*200 | 8 | 5 | 1 | K Type |
| 1200 | 1100 | 200*200*300 | 12 | 6 | 1 | K Type |
| 1200 | 1100 | 300*300*300 | 27 | 8 | 1 | K Type |
| 1200 | 1100 | 300*300*400 | 36 | 10 | 3 | K Type |
| 1200 | 1100 | 400*400*400 | 64 | 16 | 3 | K Type |
| 1200 | 1100 | 500*500*500 | 125 | 25 | 3 | K Type |
| 1200 | 1100 | 600*600*600 | 216 | 36 | 3 | K Type |
| 1200 | 1100 | 800*800*800 | 512 | 64 | 3 | K Type |
| 1200 | 1100 | 900*900*900 | 729 | 80 | 3 | K Type |
| 1200 | 1100 | 1000*1000*1000 | 1000 | 100 | 3 | K Type |
1400℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1400 | 1300 | 100*100*100 | 1 | 1 | 1 | S Type |
| 1400 | 1300 | 120*120*130 | 2 | 2 | 1 | S Type |
| 1400 | 1300 | 150*150*150 | 3 | 3 | 1 | S Type |
| 1400 | 1300 | 150*150*200 | 5 | 4 | 1 | S Type |
| 1400 | 1300 | 200*200*200 | 8 | 5 | 1 | S Type |
| 1400 | 1300 | 200*200*300 | 12 | 7 | 1 | S Type |
| 1400 | 1300 | 300*300*300 | 27 | 9 | 1 | S Type |
| 1400 | 1300 | 300*300*400 | 36 | 11 | 3 | S Type |
| 1400 | 1300 | 400*400*400 | 64 | 18 | 3 | S Type |
| 1400 | 1300 | 500*500*500 | 125 | 27 | 3 | S Type |
| 1400 | 1300 | 600*600*600 | 216 | 40 | 3 | S Type |
| 1400 | 1300 | 800*800*800 | 512 | 70 | 3 | S Type |
| 1400 | 1300 | 900*900*900 | 729 | 88 | 3 | S Type |
| 1400 | 1300 | 1000*1000*1000 | 1000 | 110 | 3 | S Type |
1700℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type | |
| 1700 | 1600 | 100*100*100 | 1 | 1 | 1 | B Type | |
| 1700 | 1600 | 120*120*130 | 2 | 3 | 1 | B Type | |
| 1700 | 1600 | 150*150*150 | 3 | 4 | 1 | B Type | |
| 1700 | 1600 | 150*150*200 | 5 | 5 | 1 | B Type | |
| 1700 | 1600 | 200*200*200 | 8 | 7 | 1 | B Type | |
| 1700 | 1600 | 200*200*300 | 12 | 8 | 1 | B Type | |
| 1700 | 1600 | 300*300*300 | 27 | 10 | 3 | B Type | |
| 1700 | 1600 | 300*300*400 | 36 | 12 | 3 | B Type | |
| 1700 | 1600 | 400*400*400 | 64 | 20 | 3 | B Type | |
| 1700 | 1600 | 500*500*500 | 125 | 30 | 3 | B Type | |
| 1700 | 1600 | 600*600*600 | 216 | 45 | 3 | B Type | |
| 1700 | 1600 | 800*800*800 | 512 | 80 | 3 | B Type | |
| 1700 | 1600 | 900*900*900 | 729 | 96 | 3 | B Type | |
| 1700 | 1600 | 1000*1000*1000 | 1000 | 120 | 3 | B Type | |
1800℃ Technical parameter of Sinowin Box Furnace：
| Max.Temperature（℃） | Work Temperature（℃） | Work area Size） | Volume（L） | Power（KW） | Phase | Thermocouple type |
| 1800 | 1700 | 100*100*100 | 1 | 2 | 1 | B Type |
| 1800 | 1700 | 120*120*130 | 2 | 4 | 1 | B Type |
| 1800 | 1700 | 150*150*150 | 3 | 6 | 1 | B Type |
| 1800 | 1700 | 150*150*200 | 5 | 7 | 1 | B Type |
| 1800 | 1700 | 200*200*200 | 8 | 8 | 1 | B Type |
| 1800 | 1700 | 200*200*300 | 12 | 9 | 1 | B Type |
| 1800 | 1700 | 300*300*300 | 27 | 12 | 3 | B Type |
| 1800 | 1700 | 300*300*400 | 36 | 15 | 3 | B Type |
Q: What is the maximum working temperature of the box-type furnace?
A: The box-type furnace can reach an impressive maximum working temperature of up to 1800℃, making it suitable for a wide range of high-temperature processing applications.
Q: What capacity options are available for the box-type furnace?
A: We offer a variety of capacity options ranging from 1L to 1000L. Each furnace can be customized according to your specific operational needs, ensuring you get the most efficient solution for your requirements.
Q: What types of heating elements can I choose from?
A: Our box-type furnace provides multiple heating element options, including HRE iron-chromium-aluminum resistance wire, U-shaped silicon carbide rods, and U-shaped silicon-molybdenum rods. This variety ensures even and efficient heating tailored to your application.
Q: How safe is the operation of the box-type furnace?
A: Safety is a top priority with our box-type furnace. It features optional top-opening or side-opening door designs that keep operators away from the heat source, ensuring a secure and convenient operation.
Q: Does the box-type furnace offer programmable control options?
A: Yes, the furnace is equipped with an advanced intelligent control system, featuring 50 programmable automatic control functions that allow for precise temperature curve management to meet your specific needs.
Q: What safety features does the box-type furnace have?
A: To enhance safety, our box-type furnace is designed with an over-temperature alarm feature. This vital safety mechanism helps prevent unexpected incidents, giving you peace of mind during operation.
Q: How does the box-type furnace manage cooling?
A: The furnace incorporates a dual-layer air cooling structure, ensuring the outer shell temperature remains below 60℃. This not only protects operators from heat but also extends the lifespan of the equipment significantly.
- —
Feel free to reach out if you have any more questions or need assistance with your order. We are here to help you get the best performance from your box-type furnace!
