Car Bottom Annealing and Tempering Furnace for Heat Treatment

Product Overview:

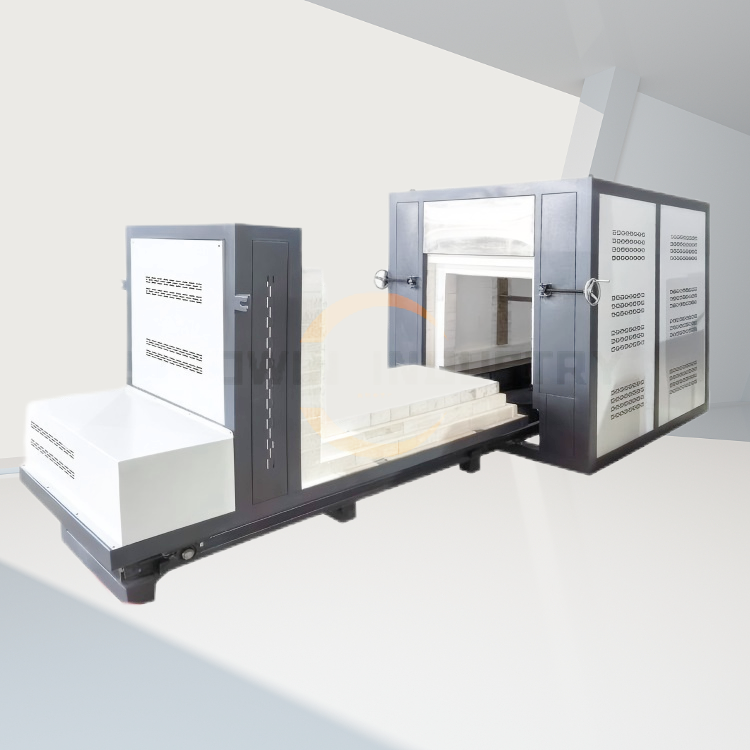

The high-temperature Car Bottom Annealing and Tempering Furnace manufactured by Sinowin Industry features a rectangular box structure with a movable loading platform. Work-pieces are placed on the worktable and can be easily loaded and unloaded by an electric trolley. The furnace door operates with an electric control system, allowing for convenient up-and-down access. The furnace lining is constructed from lightweight aluminum oxide fiber boards, while the furnace base is built with lightweight insulation bricks and heavy-duty refractory bricks. Heating elements include resistance wires and bands, as well as silicon carbide and silicon-molybdenum rods. The outer shell is made from steel plates and structural steel, equipped with a mechanically-driven furnace door and trolley. Specific configurations are customizable based on customer requirements and operating temperature.sinowin industry supply the satisfied Pre-sales and after-sales service to enhance your thermal process industry

Temperature Control Method:

Our furnace employs a microcomputer intelligent regulation technology featuring PID control and fully automatic operation with self-tuning capabilities. It supports multi-segment programming and controls various heating, holding, and cooling programs with high precision. The integrated modules include controllable silicon control and phase-triggering systems. Extensive safety features are included, such as independent over-temperature protection, overpressure, overflow, leakage, and short-circuit safeguards, ensuring high automation levels and compliance with industry standards.

Product Features:

1. The furnace chamber is made from imported high-purity lightweight aluminum ceramic materials, offering high hardness, resistance to powdering at elevated temperatures, and compliance with industry standards during high-temperature sintering.
2. Heating elements made from resistance wires, silicon carbide rods, or silicon-molybdenum rods can withstand substantial loads, providing excellent stability and longevity, with uniform temperature distribution.
3. Our patented temperature control design accelerates heating rates, improves temperature uniformity, and enhances sintering efficiency, achieving three times the performance of conventional furnaces in the same specification range.
4. The intelligent temperature control instruments offer high precision, minimal temperature fluctuations, compensation, and correction capabilities, with a control precision of ±1°C (third-party testing certificates available).
5. The equipment features operational and standby indicator lights for easy monitoring of the furnace’s operational status.
6. A double-layer shell made from carbon steel with anti-rust, high-temperature baked paint treatment ensures durability.
7. All electronic components are sourced from Delixi, incorporating leakage protection for enhanced reliability.
8. The furnace is equipped with over-temperature alarms and power cut-off systems, providing a reliable operational safety net.
9. The microcomputer control system features smart PID regulation, 30 programmable temperature control curves, allowing for automated operation without supervision (full automation of heating, cooling, and holding).
10. Additionally, our software enables computer inter-connectivity for remote control of single or multiple furnaces, real-time tracking, historical record keeping, and report generation. A paperless recording device can also be installed for data storage and output.

Technical Parameters of sinowin industry’s Car Bottom Annealing and Tempering Furnace

Main Application:

The Car Bottom Annealing and Tempering Furnace is designed and produced by Sinowin Industry for high-temperature sintering processes in universities, research institutions, and industrial enterprises. It is ideal for applications such as metal annealing, chemical processing, metallurgy, ceramics, glass products, new material development, organic matter ashing, and quality testing. This furnace manufactured by Sinowin Industry is also suitable for military, electronics, pharmaceuticals, and special materials production and experimental use. Whether you’re in the manufacturing sector or a research facility, NanYang Sinowin Industry supply the indispensable industrial&lab furnaces for your heat treatment process, and we are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment .Donot hesitate to Contact us at once for any further information .
