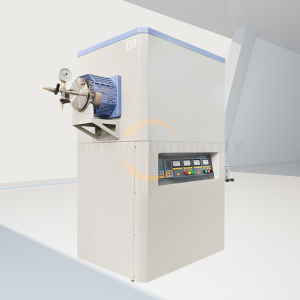

Product Description : High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace
The High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace is used for high-performance heat treatment and material processing. Designed for precision and efficiency, this advanced furnace is engineered to meet the demanding needs of various industrial applications.
Features of the High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace:
- Exceptional Temperature Control: The High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace is capable of reaching temperatures of up to 1800 degrees Celsius, ensuring optimal conditions for sintering, annealing, and other high-temperature processes.
- Vertical Design for Space Efficiency: Featuring a vertical cylindrical design, this furnace maximizes available floor space while providing easy access for loading and unloading materials. Its compact footprint makes it ideal for laboratories and production facilities with limited space.
- Vacuum Environment: The advanced vacuum capabilities of this furnace ensure an inert atmosphere during processing, preventing oxidation and contamination. This is crucial for achieving high-quality results and maintaining the integrity of sensitive materials.
- Versatile Applications: The High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace is suitable for a wide range of materials, including metals, ceramics, glass, and composites. Whether you are conducting research, prototyping, or full-scale production, this furnace offers the flexibility to meet your needs.
- User-Friendly Interface: Equipped with a state-of-the-art digital control system, the furnace allows for precise temperature and vacuum monitoring. Users can easily program and adjust settings, ensuring consistent and repeatable results.
- Durability and Reliability: Built with high-quality materials and components, the High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace is designed for long-lasting performance. Its robust construction withstands the rigors of industrial use, making it a reliable investment for your operation.
The High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace produced by nanyang sinowin industry stands out as a premier choice for high-temperature applications. With its exceptional performance, space-saving design, and advanced technology, it provides a powerful solution for your material processing needs.
Technical Parameters of the High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace:
High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1700oC ( continuous ) |
| Maximum Working Temperature | 1820oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC) Ball valve and vacuum gauge is installed for immediate use
Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | High quality Mois2 heater M1800 |
| Thermocouples | B type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 6KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 160kg |
| Detailed Description | |
| High quality High quality M1900 Mosi2 heater as heating element and can be heated up to 1800oC .
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1800VCF | 120x120x130mm or dia120H150mm |
| SW-1800VCF | 150x150x150mm or dia150H200mm |
| SW-1800VCF | 200x200x200mm or dia200H200mm |
| SW-1800VCF | 200x200x300mm or dia200H300mm |
| SW-1800VCF | 250x250x300mm or dia250H300mm |
| SW-1800VCF | 300x300x400mm or dia300H400mm |
| SW-1800VCF | 450x450x500mm or dia450H500mm |
Choose the High-Temperature 1800 degree Vertical Cylindrical Vacuum Furnace by nanyang sinowin industry for your thermal processing needs and experience unmatched quality and innovation in high-temperature technology. Whether you’re in research, manufacturing, or materials science, this furnace stands out as an indispensable tool in your operations. Donot hesitate to Contact us at once for more information ,NanYang Sinowin Industry are not only a supplier but a reliable partner to assist you the safe solutions of the heat treatment
Technical Parameters of the High-Temperature 1800°C Vertical Cylindrical Vacuum Furnace:
High-Temperature 1800°C Vertical Cylindrical Vacuum Furnace |
|
| Main Specifications: | |
| Inside Chamber Size | Dia240 x 220mm |
| Standard Working Temperature | 1700oC ( continuous ) |
| Maximum Working Temperature | 1820oC ( < 3 hrs) |
| Vacuum Flange | Stainless steel with double hi-temperature silicone O-rings ( <300oC) Ball valve and vacuum gauge is installed for immediate use
Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included. Must put the refractory disk in front flange to avoid flange over-heated |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | High quality Mois2 heater M1800 |
| Thermocouples | B type |
| Working Voltage | AC 220V single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 6KW |
| Outside Size | 550 x640 x820 mm |
| Net Weight | 160kg |
| Detailed Description | |
| High quality High quality M1900 Mosi2 heater as heating element and can be heated up to 1800oC .
Stainless steel vacuum flange with one two ball valves and vacuum gauge is included for immediate use. Built in precision digital temperature controller is 30 segments programmable to control heating rate, cooling rate and dwell time All accessories are included for immediate use One pcs refractory disk which shall be put top of inside quartz liner to protect stainless steel from heat damage. |
|
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| Heating Element, spare parts | 2 pcs |
| B type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size (WXHXDmm OR DIA/Hmm) |
| SW-1800VCF | 120x120x130mm or dia120H150mm |
| SW-1800VCF | 150x150x150mm or dia150H200mm |
| SW-1800VCF | 200x200x200mm or dia200H200mm |
| SW-1800VCF | 200x200x300mm or dia200H300mm |
| SW-1800VCF | 250x250x300mm or dia250H300mm |
| SW-1800VCF | 300x300x400mm or dia300H400mm |
| SW-1800VCF | 450x450x500mm or dia450H500mm |
